A class to provide a window with experimental/residuals plots. More...

#include "us_resplot_fem.h"

Inheritance diagram for US_ResidPlotFem:

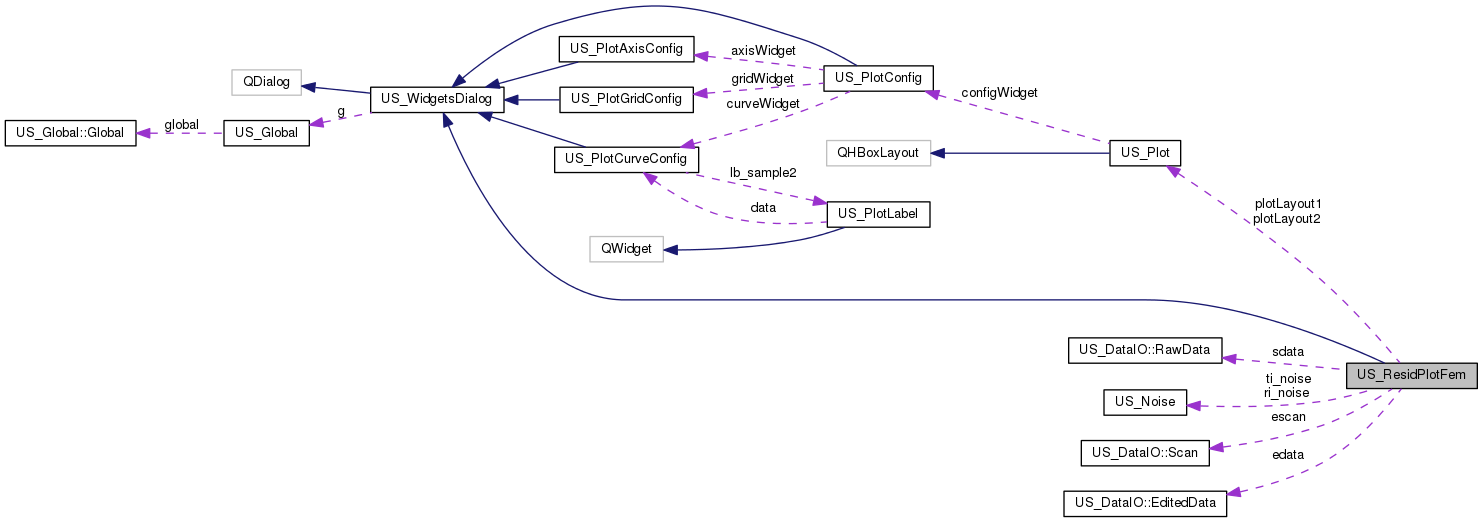

Collaboration diagram for US_ResidPlotFem:

Public Member Functions
	US_ResidPlotFem (QWidget *)

void	set_plot (int)
	Force a specific plot in the lower plot. More...

QwtPlot *	rp_data_plot2 ()
	Return a QwtPlot pointer for the lower plot. More...

Public Member Functions inherited from US_WidgetsDialog
	US_WidgetsDialog (QWidget *, Qt::WindowFlags)

QLabel *	us_label (const QString &, int=0, int=QFont::Bold)

QLabel *	us_textlabel (const QString &, int=-1, int=QFont::Bold)

QLabel *	us_banner (const QString &, int=0, int=QFont::Bold)

QPushButton *	us_pushbutton (const QString &, bool=true, int=0)

QTextEdit *	us_textedit (void)

QLineEdit *	us_lineedit (const QString &=0, int=0, bool=false)

void	us_setReadOnly (QLineEdit *, bool=true)

void	us_setReadOnly (QTextEdit *, bool=true)

QListWidget *	us_listwidget (int=0)

QGridLayout *	us_checkbox (const QString &, QCheckBox *&, bool=false)

QGridLayout *	us_radiobutton (const QString &text, QRadioButton *&rb, bool state=false)

QProgressBar *	us_progressBar (int, int, int=0)

QComboBox *	us_comboBox (void)

QLCDNumber *	us_lcd (int, int=0)

QwtCounter *	us_counter (int, double, double, double=0.0)

QwtPlot *	us_plot (const QString &, const QString &=QString(), const QString &=QString())

QwtPlotGrid *	us_grid (QwtPlot *)

QwtPlotCurve *	us_curve (QwtPlot *, const QString &)

QwtPlotPicker *	us_picker (QwtPlot *)

QTabWidget *	us_tabwidget (int=0, int=QFont::Bold)

Protected Attributes
US_DataIO::EditedData *	edata

US_DataIO::Scan *	escan

QList< int > *	excllist

US_DataIO::RawData *	sdata

US_Noise *	ri_noise

US_Noise *	ti_noise

QPointer< US_ResidsBitmap >	resbmap

QCheckBox *	ck_plteda

QCheckBox *	ck_subtin

QCheckBox *	ck_subrin

QCheckBox *	ck_pltsda

QCheckBox *	ck_addtin

QCheckBox *	ck_addrin

QCheckBox *	ck_pltres

QCheckBox *	ck_plttin

QCheckBox *	ck_pltrin

QCheckBox *	ck_pltran

QCheckBox *	ck_shorbm

QLineEdit *	le_vari

QLineEdit *	le_rmsd

Private Slots
void	pedaCheck (bool)

void	stinCheck (bool)

void	srinCheck (bool)

void	psdaCheck (bool)

void	atinCheck (bool)

void	arinCheck (bool)

void	presCheck (bool)

void	ptinCheck (bool)

void	prinCheck (bool)

void	pranCheck (bool)

void	srbmCheck (bool)

void	close_all (void)

void	plot_data (void)

void	plot_edata (void)

void	plot_rdata (void)

void	resids_closed (void)

Private Attributes
QHBoxLayout *	mainLayout

QVBoxLayout *	leftLayout

QVBoxLayout *	rightLayout

QGridLayout *	datctrlsLayout

QGridLayout *	resctrlsLayout

QVBoxLayout *	buttonsLayout

US_Plot *	plotLayout1

US_Plot *	plotLayout2

QwtPlot *	data_plot1

QwtPlot *	data_plot2

bool	have_ed

bool	have_sd

bool	have_ti

bool	have_ri

bool	have_bm

bool	skip_plot

int	dbg_level

Additional Inherited Members
Public Attributes inherited from US_WidgetsDialog
US_Global	g
	Connect to global memory and make the values accessible. More...

QPalette	vlgray
	Very light gray palette for read-only line edits. More...

Detailed Description

A class to provide a window with experimental/residuals plots.

Definition at line 18 of file us_resplot_fem.h.

Constructor & Destructor Documentation

US_ResidPlotFem::US_ResidPlotFem ( QWidget * parent = 0 )

Parameters

parent A pointer to the parent widget of this one

Definition at line 13 of file us_resplot_fem.cpp.

Member Function Documentation

void US_ResidPlotFem::arinCheck ( bool )

privateslot

Definition at line 275 of file us_resplot_fem.cpp.

void US_ResidPlotFem::atinCheck ( bool )

privateslot

Definition at line 269 of file us_resplot_fem.cpp.

void US_ResidPlotFem::close_all ( void )

privateslot

Definition at line 366 of file us_resplot_fem.cpp.

void US_ResidPlotFem::pedaCheck ( bool chkd )

privateslot

Definition at line 221 of file us_resplot_fem.cpp.

void US_ResidPlotFem::plot_data ( void )

privateslot

Definition at line 375 of file us_resplot_fem.cpp.

void US_ResidPlotFem::plot_edata ( void )

privateslot

Definition at line 386 of file us_resplot_fem.cpp.

void US_ResidPlotFem::plot_rdata ( void )

privateslot

Definition at line 542 of file us_resplot_fem.cpp.

void US_ResidPlotFem::pranCheck ( bool chkd )

privateslot

Definition at line 332 of file us_resplot_fem.cpp.

void US_ResidPlotFem::presCheck ( bool chkd )

privateslot

Definition at line 281 of file us_resplot_fem.cpp.

void US_ResidPlotFem::prinCheck ( bool chkd )

privateslot

Definition at line 315 of file us_resplot_fem.cpp.

void US_ResidPlotFem::psdaCheck ( bool chkd )

privateslot

Definition at line 251 of file us_resplot_fem.cpp.

void US_ResidPlotFem::ptinCheck ( bool chkd )

privateslot

Definition at line 298 of file us_resplot_fem.cpp.

void US_ResidPlotFem::resids_closed ( void )

privateslot

Definition at line 827 of file us_resplot_fem.cpp.

QwtPlot * US_ResidPlotFem::rp_data_plot2 ( )

Return a QwtPlot pointer for the lower plot.

Definition at line 215 of file us_resplot_fem.cpp.

void US_ResidPlotFem::set_plot ( int plotf )

Force a specific plot in the lower plot.

Parameters

plotf Flag plot to force: 1,2 == ti_noise,ri_noise

Definition at line 196 of file us_resplot_fem.cpp.

void US_ResidPlotFem::srbmCheck ( bool chkd )

privateslot

Definition at line 349 of file us_resplot_fem.cpp.

void US_ResidPlotFem::srinCheck ( bool )

privateslot

Definition at line 245 of file us_resplot_fem.cpp.

void US_ResidPlotFem::stinCheck ( bool )

privateslot

Definition at line 239 of file us_resplot_fem.cpp.

Member Data Documentation

QVBoxLayout* US_ResidPlotFem::buttonsLayout

private

Definition at line 39 of file us_resplot_fem.h.

QCheckBox* US_ResidPlotFem::ck_addrin

protected

Definition at line 70 of file us_resplot_fem.h.

QCheckBox* US_ResidPlotFem::ck_addtin

protected

Definition at line 69 of file us_resplot_fem.h.

QCheckBox* US_ResidPlotFem::ck_plteda

protected

Definition at line 65 of file us_resplot_fem.h.

QCheckBox* US_ResidPlotFem::ck_pltran

protected

Definition at line 74 of file us_resplot_fem.h.

QCheckBox* US_ResidPlotFem::ck_pltres

protected

Definition at line 71 of file us_resplot_fem.h.

QCheckBox* US_ResidPlotFem::ck_pltrin

protected

Definition at line 73 of file us_resplot_fem.h.

QCheckBox* US_ResidPlotFem::ck_pltsda

protected

Definition at line 68 of file us_resplot_fem.h.

QCheckBox* US_ResidPlotFem::ck_plttin

protected

Definition at line 72 of file us_resplot_fem.h.

QCheckBox* US_ResidPlotFem::ck_shorbm

protected

Definition at line 75 of file us_resplot_fem.h.

QCheckBox* US_ResidPlotFem::ck_subrin

protected

Definition at line 67 of file us_resplot_fem.h.

QCheckBox* US_ResidPlotFem::ck_subtin

protected

Definition at line 66 of file us_resplot_fem.h.

QwtPlot* US_ResidPlotFem::data_plot1

private

Definition at line 44 of file us_resplot_fem.h.

QwtPlot* US_ResidPlotFem::data_plot2

private

Definition at line 45 of file us_resplot_fem.h.

QGridLayout* US_ResidPlotFem::datctrlsLayout

private

Definition at line 37 of file us_resplot_fem.h.

int US_ResidPlotFem::dbg_level

private

Definition at line 54 of file us_resplot_fem.h.

US_DataIO::EditedData* US_ResidPlotFem::edata

protected

Definition at line 57 of file us_resplot_fem.h.

US_DataIO::Scan* US_ResidPlotFem::escan

protected

Definition at line 58 of file us_resplot_fem.h.

QList< int >* US_ResidPlotFem::excllist

protected

Definition at line 59 of file us_resplot_fem.h.

bool US_ResidPlotFem::have_bm

private

Definition at line 51 of file us_resplot_fem.h.

bool US_ResidPlotFem::have_ed

private

Definition at line 47 of file us_resplot_fem.h.

bool US_ResidPlotFem::have_ri

private

Definition at line 50 of file us_resplot_fem.h.

bool US_ResidPlotFem::have_sd

private

Definition at line 48 of file us_resplot_fem.h.

bool US_ResidPlotFem::have_ti

private

Definition at line 49 of file us_resplot_fem.h.

QLineEdit* US_ResidPlotFem::le_rmsd

protected

Definition at line 78 of file us_resplot_fem.h.

QLineEdit* US_ResidPlotFem::le_vari

protected

Definition at line 77 of file us_resplot_fem.h.

QVBoxLayout* US_ResidPlotFem::leftLayout

private

Definition at line 35 of file us_resplot_fem.h.

QHBoxLayout* US_ResidPlotFem::mainLayout

private

Definition at line 34 of file us_resplot_fem.h.

US_Plot* US_ResidPlotFem::plotLayout1

private

Definition at line 41 of file us_resplot_fem.h.

US_Plot* US_ResidPlotFem::plotLayout2

private

Definition at line 42 of file us_resplot_fem.h.

QPointer< US_ResidsBitmap > US_ResidPlotFem::resbmap

protected

Definition at line 63 of file us_resplot_fem.h.

QGridLayout* US_ResidPlotFem::resctrlsLayout

private

Definition at line 38 of file us_resplot_fem.h.

US_Noise* US_ResidPlotFem::ri_noise

protected

Definition at line 61 of file us_resplot_fem.h.

QVBoxLayout* US_ResidPlotFem::rightLayout

private

Definition at line 36 of file us_resplot_fem.h.

US_DataIO::RawData* US_ResidPlotFem::sdata

protected

Definition at line 60 of file us_resplot_fem.h.

bool US_ResidPlotFem::skip_plot

private

Definition at line 52 of file us_resplot_fem.h.

US_Noise* US_ResidPlotFem::ti_noise

protected

Definition at line 62 of file us_resplot_fem.h.
