A dialog class to select and load data (edited or raw) More...

#include "us_data_loader.h"

Inheritance diagram for US_DataLoader:

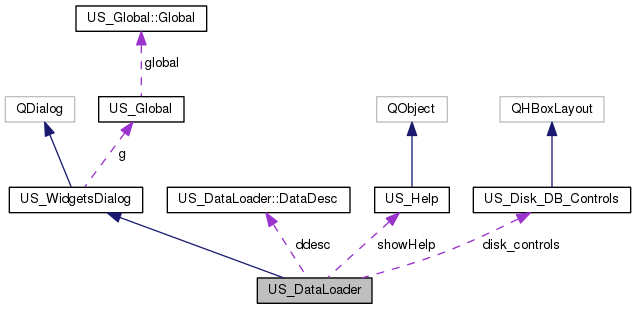

Collaboration diagram for US_DataLoader:

Classes
class	DataDesc

Signals
void	changed (bool DB)
	A signal to tell the parent when the disk/db selection has changed. More...

void	progress (const QString)
	A signal to provide the parent with a progress message. More...

Public Member Functions
	US_DataLoader (bool, int, QVector< US_DataIO::RawData > &, QVector< US_DataIO::EditedData > &, QStringList &, QString &, QString="")
	Main constructor for dialog to select edit and raw data and load it. More...

Public Member Functions inherited from US_WidgetsDialog
	US_WidgetsDialog (QWidget *, Qt::WindowFlags)

QLabel *	us_label (const QString &, int=0, int=QFont::Bold)

QLabel *	us_textlabel (const QString &, int=-1, int=QFont::Bold)

QLabel *	us_banner (const QString &, int=0, int=QFont::Bold)

QPushButton *	us_pushbutton (const QString &, bool=true, int=0)

QTextEdit *	us_textedit (void)

QLineEdit *	us_lineedit (const QString &=0, int=0, bool=false)

void	us_setReadOnly (QLineEdit *, bool=true)

void	us_setReadOnly (QTextEdit *, bool=true)

QListWidget *	us_listwidget (int=0)

QGridLayout *	us_checkbox (const QString &, QCheckBox *&, bool=false)

QGridLayout *	us_radiobutton (const QString &text, QRadioButton *&rb, bool state=false)

QProgressBar *	us_progressBar (int, int, int=0)

QComboBox *	us_comboBox (void)

QLCDNumber *	us_lcd (int, int=0)

QwtCounter *	us_counter (int, double, double, double=0.0)

QwtPlot *	us_plot (const QString &, const QString &=QString(), const QString &=QString())

QwtPlotGrid *	us_grid (QwtPlot *)

QwtPlotCurve *	us_curve (QwtPlot *, const QString &)

QwtPlotPicker *	us_picker (QwtPlot *)

QTabWidget *	us_tabwidget (int=0, int=QFont::Bold)

Protected Member Functions
bool	eventFilter (QObject , QEvent )
	Event filter to flag whether a mouse click is with the right mouse button. More...

Private Slots
bool	load_edit (void)

void	describe (void)

void	scan_dbase_edit (void)

void	scan_local_edit (void)

void	scan_dbase_runs (void)

void	scan_local_runs (void)

void	pare_to_latest (void)

void	pare_latest_mwl (void)

void	show_data_info (QPoint)

void	list_data (void)

void	get_person (void)

void	update_disk_db (bool)

void	update_person (int)

void	search (const QString &)

void	cancelled (void)

void	selected (void)

void	accepted (void)

void	experiment_info (QString &, QString &, QString &)

void	help (void)

Private Attributes
US_Help	showHelp

QMap< QString, DataDesc >	datamap

DataDesc	ddesc

QStringList	dlabels

QPushButton *	pb_invest

QLineEdit *	le_invest

QLineEdit *	le_dfilter

QTextEdit *	te_notes

QTreeWidget *	tw_data

bool	latest

bool	sel_run

QString	dsearch

QString	dinvtext

QString	runID_sel

US_Disk_DB_Controls *	disk_controls
	Radiobuttons for disk/db choice. More...

QVector< US_DataIO::RawData > &	rawData

QVector< US_DataIO::EditedData > &	editedData

QStringList &	triples

QString &	description

QString	etype_filt

Additional Inherited Members
Public Attributes inherited from US_WidgetsDialog
US_Global	g
	Connect to global memory and make the values accessible. More...

QPalette	vlgray
	Very light gray palette for read-only line edits. More...

Detailed Description

A dialog class to select and load data (edited or raw)

Definition at line 15 of file us_data_loader.h.

Constructor & Destructor Documentation

US_DataLoader::US_DataLoader	(	bool	late,
		int	local,
		QVector< US_DataIO::RawData > &	rData,
		QVector< US_DataIO::EditedData > &	eData,
		QStringList &	trips,
		QString &	desc,
		QString	tfilt = `""`
	)

Main constructor for dialog to select edit and raw data and load it.

Parameters

late	Flag: present only latest if editsel=true
local	Flag: default data source to local disk
rData	A reference to a vector of rawData objects
eData	A reference to a vector of editedData objects
trips	A reference to a list of triples to fill
desc	A concatenation of DataDesc information
tfilt	Optional experiment type filter (default=Velocity).

Definition at line 17 of file us_data_loader.cpp.

Member Function Documentation

void US_DataLoader::accepted ( void )

privateslot

Definition at line 778 of file us_data_loader.cpp.

void US_DataLoader::cancelled ( void )

privateslot

Definition at line 740 of file us_data_loader.cpp.

void US_DataLoader::changed ( bool DB )

signal

A signal to tell the parent when the disk/db selection has changed.

Parameters

DB	True if DB is selected

void US_DataLoader::describe ( void )

privateslot

Definition at line 501 of file us_data_loader.cpp.

bool US_DataLoader::eventFilter	(	QObject *	obj,
		QEvent *	e
	)

protected

Event filter to flag whether a mouse click is with the right mouse button.

Parameters

obj	Pointer to object on which event occurred.
e	Pointer to event to filter.

Returns: Flag if event has been completely handled.

Definition at line 1544 of file us_data_loader.cpp.

void US_DataLoader::experiment_info	(	QString &	rundir,
		QString &	elabel,
		QString &	expID
	)

privateslot

Definition at line 1633 of file us_data_loader.cpp.

void US_DataLoader::get_person ( void )

privateslot

Definition at line 527 of file us_data_loader.cpp.

void US_DataLoader::help ( void )

inlineprivateslot

Definition at line 123 of file us_data_loader.h.

void US_DataLoader::list_data ( void )

privateslot

Definition at line 549 of file us_data_loader.cpp.

bool US_DataLoader::load_edit ( void )

privateslot

Definition at line 144 of file us_data_loader.cpp.

void US_DataLoader::pare_latest_mwl ( void )

privateslot

Definition at line 1473 of file us_data_loader.cpp.

void US_DataLoader::pare_to_latest ( void )

privateslot

Definition at line 1410 of file us_data_loader.cpp.

void US_DataLoader::progress ( const QString )

signal

A signal to provide the parent with a progress message.

void US_DataLoader::scan_dbase_edit ( void )

privateslot

Definition at line 800 of file us_data_loader.cpp.

void US_DataLoader::scan_dbase_runs ( void )

privateslot

Definition at line 1209 of file us_data_loader.cpp.

void US_DataLoader::scan_local_edit ( void )

privateslot

Definition at line 1041 of file us_data_loader.cpp.

void US_DataLoader::scan_local_runs ( void )

privateslot

Definition at line 1273 of file us_data_loader.cpp.

void US_DataLoader::search ( const QString & search_string )

privateslot

Definition at line 130 of file us_data_loader.cpp.

void US_DataLoader::selected ( void )

privateslot

Definition at line 747 of file us_data_loader.cpp.

void US_DataLoader::show_data_info ( QPoint pos )

privateslot

Definition at line 1562 of file us_data_loader.cpp.

void US_DataLoader::update_disk_db ( bool db )

privateslot

Definition at line 1619 of file us_data_loader.cpp.

void US_DataLoader::update_person ( int ID )

privateslot

Definition at line 541 of file us_data_loader.cpp.

Member Data Documentation

QMap< QString, DataDesc > US_DataLoader::datamap

private

Definition at line 76 of file us_data_loader.h.

DataDesc US_DataLoader::ddesc

private

Definition at line 78 of file us_data_loader.h.

QString& US_DataLoader::description

private

Definition at line 101 of file us_data_loader.h.

QString US_DataLoader::dinvtext

private

Definition at line 93 of file us_data_loader.h.

US_Disk_DB_Controls* US_DataLoader::disk_controls

private

Radiobuttons for disk/db choice.

Definition at line 96 of file us_data_loader.h.

QStringList US_DataLoader::dlabels

private

Definition at line 79 of file us_data_loader.h.

QString US_DataLoader::dsearch

private

Definition at line 92 of file us_data_loader.h.

QVector< US_DataIO::EditedData >& US_DataLoader::editedData

private

Definition at line 99 of file us_data_loader.h.

QString US_DataLoader::etype_filt

private

Definition at line 102 of file us_data_loader.h.

bool US_DataLoader::latest

private

Definition at line 89 of file us_data_loader.h.

QLineEdit* US_DataLoader::le_dfilter

private

Definition at line 84 of file us_data_loader.h.

QLineEdit* US_DataLoader::le_invest

private

Definition at line 83 of file us_data_loader.h.

QPushButton* US_DataLoader::pb_invest

private

Definition at line 81 of file us_data_loader.h.

QVector< US_DataIO::RawData >& US_DataLoader::rawData

private

Definition at line 98 of file us_data_loader.h.

QString US_DataLoader::runID_sel

private

Definition at line 94 of file us_data_loader.h.

bool US_DataLoader::sel_run

private

Definition at line 90 of file us_data_loader.h.

US_Help US_DataLoader::showHelp

private

Definition at line 48 of file us_data_loader.h.

QTextEdit* US_DataLoader::te_notes

private

Definition at line 86 of file us_data_loader.h.

QStringList& US_DataLoader::triples

private

Definition at line 100 of file us_data_loader.h.

QTreeWidget* US_DataLoader::tw_data

private

Definition at line 87 of file us_data_loader.h.

The documentation for this class was generated from the following files:
