UltraScan 2-Dimensional Spectrum Analysis:

This module enables you to perform 2-dimensional spectrum analysis on a chosen experimental data set. Upon completion of an analysis fit, plots available include: experiment; simulation; overlayed experiment and simulation; residuals; time-invariant noise; radially-invariant noise; 3-d model. Final outputs may include one or more models and noises.

The 2DSA method is used for composition analysis of sedimentation velocity experiments. It can generate sedimentation coefficient, diffusion coefficient, frictional coefficient, f/f0 ratio, and molecular weight distributions. The distributions can be plotted as 3-dimensional plots (2 parameters from the above list against each other), with the third dimension representing the concentration of the solute found in the composition analysis. The set of all such final calculated solutes form a model which are used to generate a simulation via Lamm equations. The simulation is plotted overlaying a plot of experimental data.

Every 2DSA pass can be repeated for a specified number of refinement iterations. These iterations, in turn, can be repeated for a specified number of meniscus points or Monte Carlo iterations.

Each refinement iteration proceeds over a defined grid of s and f/f0 values. That grid is divided into subgrids as defined by a number of grid refinements in each direction.

Process:

• Load Experimental Data: First, load experimental velocity data. Click on "Load Data" to select an edited velocity data set from the database or from local disk.
• Define the Analysis Fit: Secondly, open an analysis control window by clicking on "Fit Control". Within that dialog, define the grids and iterations that comprise the analysis.
• Start the Fit: Next, after having specified analysis parameters, begin the fit analysis by clicking "Start Fit".
• Display and Save Results: After simulation, a variety of options are available for displaying simulation results, residuals, and distributions. Report text files and graphics plot files can also be generated.

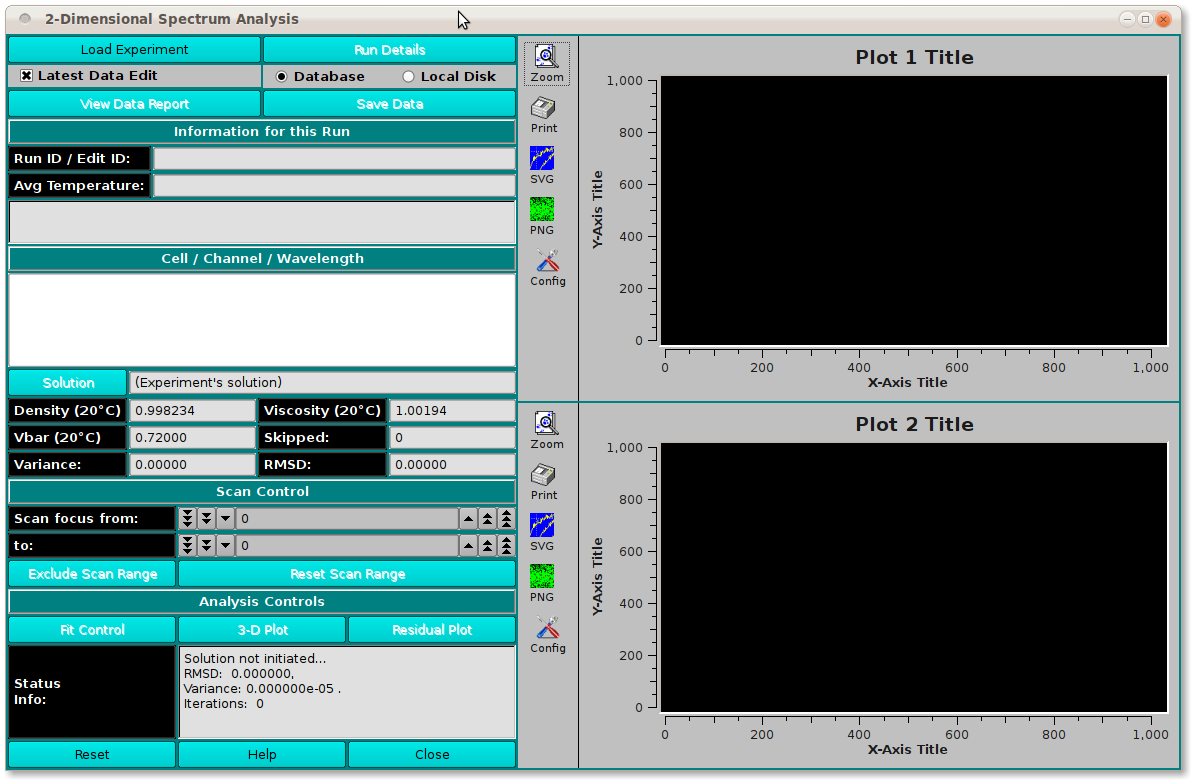

Main Window (as it is upon open):

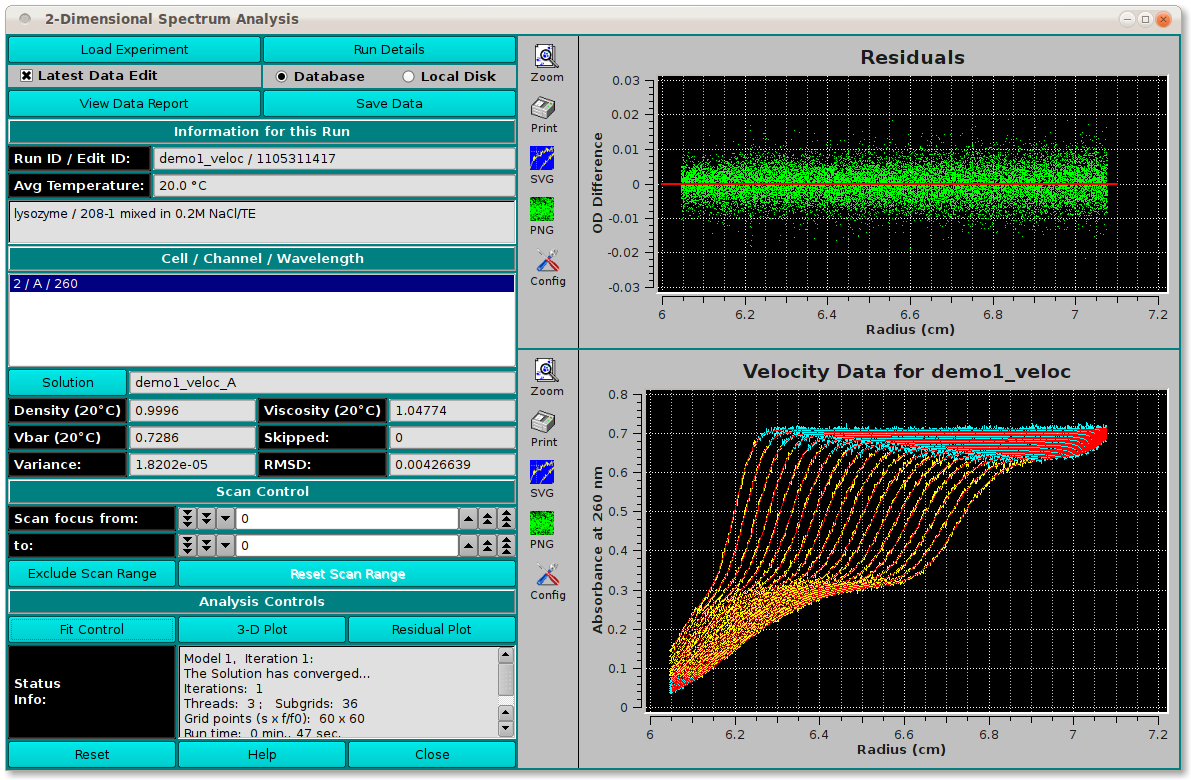

Once an analysis is complete, the main window will appear similar to this:

Functions:

• Load Experiment Click here and, in the resulting Load Data Dialog, select an edited data set to load.
• Run Details Pop up a dialog showing run details.
• Latest Data Edit Uncheck to allow choosing an edit other than the latest one for the raw experimental data.
• Database Select to specify data input from the database.
• Local Disk Select to specify data input from local disk.
• View Data Report Generate a report file and view it in a dialog.
• Save Data Save models and noises, as well as report and plot images files.
• Run ID / Edit ID: The Run identifier string and the Edit identifier (generally a time string) are displayed for loaded edit.
• Avg Temperature: The average temperature over all the scans of the loaded data.
• (experiment description) A text string is displayed giving a fairly detailed description of the experiment.
• Cell / Channel / Wavelength One or more rows of data edit triples. If more than one, click on a row to select it as the data of interest.
• Solution Click this button to open a Solution Management dialog that allows changes to buffer and analyte characteristics of the data set.
• Density (20° C) Shows the density value for the loaded experiment. Click the Solution button to open a dialog in which density and other values may be changed.
• Viscosity (20° C) Shows the viscosity value for thes loaded experiment. Click the Solution button to open a dialog in which viscosity and other values may be changed.
• Vbar (20° C) Shows the vbar value for the loaded experiment. Click the Solution button to open a dialog in which vbar and other values may be changed.
• Skipped The count of experiment data scans skipped.
• Variance: Variance value (square of RMSD) for residuals.
• RMSD: Root-Mean-Square-of-Differences for residuals.
• Scan focus from: Select a low scan of the range of values for exclusion from analysis.
• to: Select a high scan of the range of values for exclusion from analysis.
• Exclude Scan Range Initiate exclusion of the scans given in the above controls.
• Reset Scan Range Reset to the full range of scans.
• Fit Control Open a dialog to set analysis parameters and start a fit run. For details on the results of clicking this button, see 2DSA Analysis Control.

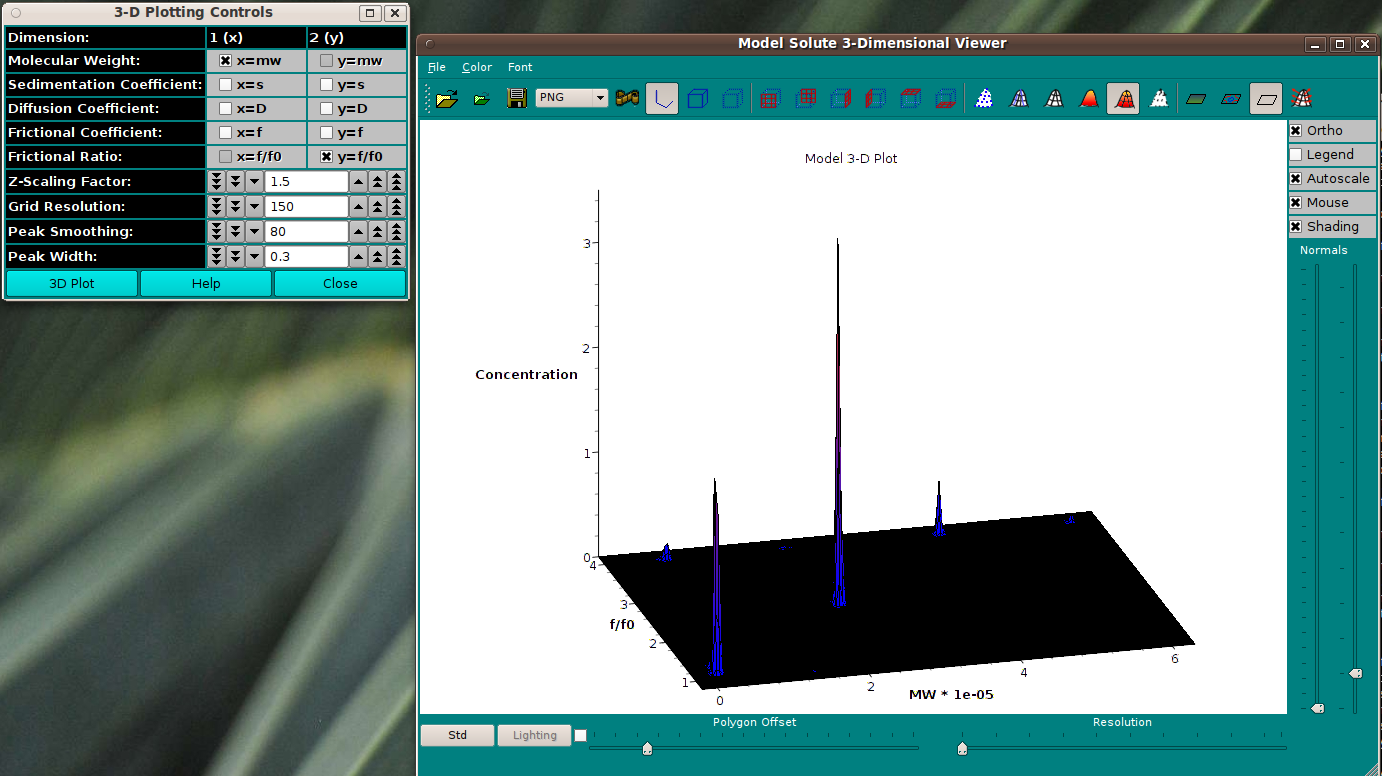

• 3-D Plot Open a control window for a 3-dimensional plot of the final computed model. See 2DSA 3-D Plot Dialog for an example of a 3-D plot, along with its control dialog.

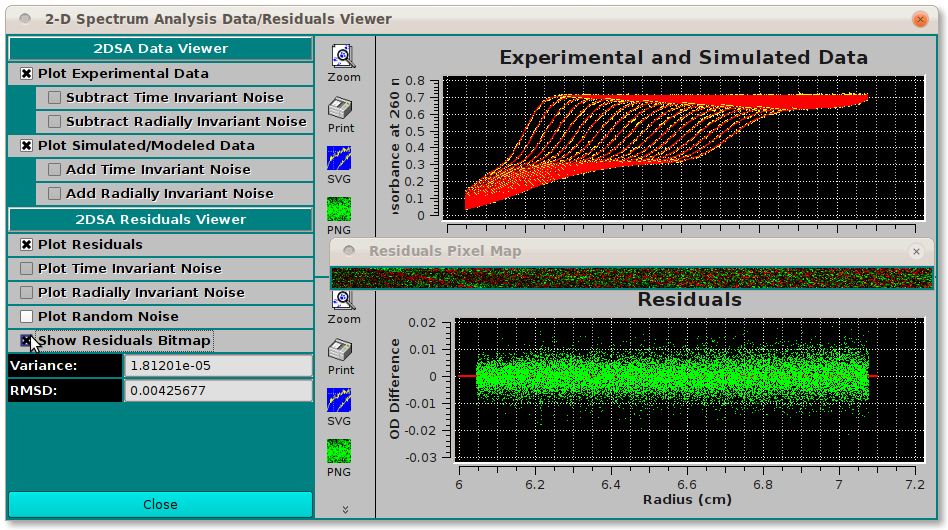

• Residual Plot Open a plot dialog for a far more detailed set of result plots. See 2DSA Residual Plot Dialog for an example of the residual plot dialog.
• Status Info: This text window displays continually updated summaries of computational activity and results.
• Reset Reset display parameters to defaults.
• Help Display this and other documentation.
• Close Close all windows and exit.
• (upper right side plot) Upon analysis completion, this plot is of the Residuals (Experimental minus Simulation minus any Noise).
• (lower right side plot) Upon analysis completion, this plot is of an overlay of the Experimental and Simulation data.
