US_Experiment Class Reference

#include "us_experiment.h"

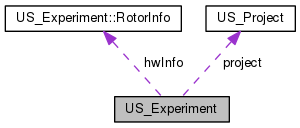

Collaboration diagram for US_Experiment:

Classes
struct	CalibrationInfo
struct	RotorInfo

Public Member Functions
	US_Experiment (void)
	Generic constructor for the US_Experiment class. More...
int	checkRunID (US_DB2 *=0)
	Determine if the current experiment runID exists in the DB. Updates expID accordingly, or to 0 if not found. More...
int	saveToDB (bool, US_DB2 *, QVector< SP_SPEEDPROFILE > &)
	Function to save the experiment information to db. More...
int	readFromDB (QString, US_DB2 *, QVector< SP_SPEEDPROFILE > &)
	Reads experiment information from the db. More...
int	saveToDisk (QList< US_Convert::TripleInfo > &, QString, QString, QString, QVector< SP_SPEEDPROFILE > &)
	Writes an xml file. More...
int	readFromDisk (QList< US_Convert::TripleInfo > &, QString, QString, QString)
	Reads an xml file. More...
int	saveRIDisk (QString, QString)
	Writes the radial intensity profile data to the HD. More...
int	readRIDisk (QString, QString)
	Reads radial intensity profile data from the HD. More...
void	clear (void)
	Function to reset all class variables to defaults. More...
void	show (void)
	Temporary function to display current exp info. More...

Public Attributes
int	invID
	The personID of the investigator. More...
QString	invGUID
	The GUID of the investigator. More...
QString	name
	The name of the investigator. More...
int	expID
	The ID of the experiment itself. More...
QString	expGUID
	The GUID of the experiment. More...
US_Project	project
	The project this experiment is associated with. More...
QString	runID
	The run ID. More...
int	labID
	The lab in which the experiment was conducted. More...
int	instrumentID
	The identifier of the ultra-centrifuge. More...
QString	instrumentSerial
	The serial number of the instrument. More...
int	operatorID
	The personID of the person who operated the centrifuge. More...
QString	operatorGUID
	The GUID of the operator. More...
int	rotorID
	The rotor that was used. More...
QString	rotorGUID
	The GUID of the rotor. More...
QString	rotorSerial
	The serial number of the rotor. More...
QString	rotorName
	The name of the rotor. More...
int	calibrationID
	The ID of the rotor calibration. More...
double	rotorCoeff1
	The first rotor stretch calibration coefficient. More...
double	rotorCoeff2
	The second rotor stretch coefficient. More...
QDate	rotorUpdated
	The date of the calibration. More...
QString	expType
	The type of experiment. More...
QByteArray	opticalSystem
	The type of optical system used. More...
QList< double >	rpms
	A list of rotor speeds observed during the experiment. More...
QString	runTemp
	The run temperature. More...
QString	label
	The experiment label, or identifying information. More...
QString	comments
	Comments that were associated with the experiment. More...
QString	centrifugeProtocol
	The governing centrifuge protocol. More...
QString	date
	The date the record was entered or last updated. More...
bool	syncOK
	The user has connected with the db. More...
QStringList	experimentTypes
	A list of possible experiment types. More...
QVector< double >	RIProfile
	If RI data, the intensity profile. More...
QVector< int >	RIwvlns
	For RI+MWL, wavelengths present. More...
int	RI_nscans
	RI+MWL scans per profile. More...
int	RI_nwvlns
	RI+MWL wavelengths (profiles count) More...
RotorInfo	hwInfo

Private Member Functions
void	readExperiment (QXmlStreamReader &, QList< US_Convert::TripleInfo > &, QString, QString)
void	readDataset (QXmlStreamReader &, US_Convert::TripleInfo &)
void	createRIXml (QByteArray &)
int	importRIxml (QByteArray &)

Detailed Description

This class provides a data structure and associated routines to represent the relevant experiment parameters, such as the lab, instrument, and rotor on which the experiment was run.

Definition at line 21 of file us_experiment.h.

Constructor & Destructor Documentation

US_Experiment::US_Experiment

(

void

)

Generic constructor for the US_Experiment class.

Definition at line 13 of file us_experiment.cpp.

Member Function Documentation

int US_Experiment::checkRunID

(

US_DB2 *

db = 0

)

Determine if the current experiment runID exists in the DB. Updates expID accordingly, or to 0 if not found.

Parameters

db	For database access, an open database connection

Definition at line 26 of file us_experiment.cpp.

void US_Experiment::clear

(

void

)

Function to reset all class variables to defaults.

Definition at line 923 of file us_experiment.cpp.

void US_Experiment::createRIXml ( QByteArray &  str )

private

Definition at line 810 of file us_experiment.cpp.

int US_Experiment::importRIxml ( QByteArray &  str )

private

Definition at line 872 of file us_experiment.cpp.

void US_Experiment::readDataset ( QXmlStreamReader &  xml, US_Convert::TripleInfo &  triple  )

private

Definition at line 703 of file us_experiment.cpp.

void US_Experiment::readExperiment ( QXmlStreamReader &  xml, QList< US_Convert::TripleInfo > &  triples, QString  runType, QString  runID  )

private

Definition at line 527 of file us_experiment.cpp.

int US_Experiment::readFromDB	(	QString	runID,
		US_DB2 *	db,
		QVector< SP_SPEEDPROFILE > &	speedsteps
	)

Reads experiment information from the db.

Parameters

runID	The run ID of the experiment.
db	For database access, an open database connection
speedsteps	Reference to vector of experiment speed steps

Returns

One of the US_DB2 error codes

Definition at line 164 of file us_experiment.cpp.

int US_Experiment::readFromDisk	(	QList< US_Convert::TripleInfo > &	triples,
		QString	runType,
		QString	runID,
		QString	dirname
	)

Reads an xml file.

Parameters

triples	A reference to a structure provided by the calling function that will contain all the different cell/channel/wavelength defined by the xml file.
runType	A reference to a variable that will contain the type of data ( "RA", "IP", "RI", "FI", "WA", or "WI"). This information will affect how the data is stored.
runID	The run ID of the experiment.
dirname	The directory from which the files are read.

Definition at line 484 of file us_experiment.cpp.

int US_Experiment::readRIDisk	(	QString	runID,
		QString	dirname
	)

Reads radial intensity profile data from the HD.

Parameters

runID	The run ID associated with the RI data
dirname	The location where the RI Profile is.

Definition at line 753 of file us_experiment.cpp.

int US_Experiment::saveRIDisk	(	QString	runID,
		QString	dirname
	)

Writes the radial intensity profile data to the HD.

Parameters

runID	The run ID associated with the RI data
dirname	The location where the RI Profile is to go.

Definition at line 732 of file us_experiment.cpp.

int US_Experiment::saveToDB	(	bool	update,
		US_DB2 *	db,
		QVector< SP_SPEEDPROFILE > &	speedsteps
	)

Function to save the experiment information to db.

Parameters

update	Is it ok to update an existing database runID (maybe the user is updating a DB record)?
db	For database access, an open database connection
speedsteps	Reference to vector of experiment speed steps

Definition at line 43 of file us_experiment.cpp.

int US_Experiment::saveToDisk	(	QList< US_Convert::TripleInfo > &	triples,
		QString	runType,
		QString	runID,
		QString	dirname,
		QVector< SP_SPEEDPROFILE > &	speedsteps
	)

Writes an xml file.

Parameters

triples	A reference to a structure provided by the calling function that already contains all the different cell/channel/wavelength combinations in the data.
runType	A reference to a variable that already contains the type of data ( "RA", "IP", "RI", "FI", "WA", or "WI"). This information will affect how the data is written.
runID	The run ID of the experiment.
dirname	The directory in which the files are to be written.
speedsteps	Reference to a vector of speed steps for the experiment.

Definition at line 316 of file us_experiment.cpp.

void US_Experiment::show

(

void

)

Temporary function to display current exp info.

Definition at line 958 of file us_experiment.cpp.

Member Data Documentation

int US_Experiment::calibrationID

The ID of the rotor calibration.

Definition at line 57 of file us_experiment.h.

QString US_Experiment::centrifugeProtocol

The governing centrifuge protocol.

Definition at line 67 of file us_experiment.h.

QString US_Experiment::comments

Comments that were associated with the experiment.

Definition at line 66 of file us_experiment.h.

QString US_Experiment::date

The date the record was entered or last updated.

Definition at line 68 of file us_experiment.h.

QStringList US_Experiment::experimentTypes

A list of possible experiment types.

Definition at line 70 of file us_experiment.h.

QString US_Experiment::expGUID

The GUID of the experiment.

Definition at line 45 of file us_experiment.h.

int US_Experiment::expID

The ID of the experiment itself.

Definition at line 44 of file us_experiment.h.

QString US_Experiment::expType

The type of experiment.

Definition at line 61 of file us_experiment.h.

RotorInfo US_Experiment::hwInfo

Definition at line 153 of file us_experiment.h.

int US_Experiment::instrumentID

The identifier of the ultra-centrifuge.

Definition at line 49 of file us_experiment.h.

QString US_Experiment::instrumentSerial

The serial number of the instrument.

Definition at line 50 of file us_experiment.h.

QString US_Experiment::invGUID

The GUID of the investigator.

Definition at line 41 of file us_experiment.h.

int US_Experiment::invID

The personID of the investigator.

Definition at line 40 of file us_experiment.h.

QString US_Experiment::label

The experiment label, or identifying information.

Definition at line 65 of file us_experiment.h.

int US_Experiment::labID

The lab in which the experiment was conducted.

Definition at line 48 of file us_experiment.h.

QString US_Experiment::name

The name of the investigator.

Definition at line 43 of file us_experiment.h.

QString US_Experiment::operatorGUID

The GUID of the operator.

Definition at line 52 of file us_experiment.h.

int US_Experiment::operatorID

The personID of the person who operated the centrifuge.

Definition at line 51 of file us_experiment.h.

QByteArray US_Experiment::opticalSystem

The type of optical system used.

Definition at line 62 of file us_experiment.h.

US_Project US_Experiment::project

The project this experiment is associated with.

Definition at line 46 of file us_experiment.h.

int US_Experiment::RI_nscans

RI+MWL scans per profile.

Definition at line 73 of file us_experiment.h.

int US_Experiment::RI_nwvlns

RI+MWL wavelengths (profiles count)

Definition at line 74 of file us_experiment.h.

QVector< double > US_Experiment::RIProfile

If RI data, the intensity profile.

Definition at line 71 of file us_experiment.h.

QVector< int > US_Experiment::RIwvlns

For RI+MWL, wavelengths present.

Definition at line 72 of file us_experiment.h.

double US_Experiment::rotorCoeff1

The first rotor stretch calibration coefficient.

Definition at line 58 of file us_experiment.h.

double US_Experiment::rotorCoeff2

The second rotor stretch coefficient.

Definition at line 59 of file us_experiment.h.

QString US_Experiment::rotorGUID

The GUID of the rotor.

Definition at line 54 of file us_experiment.h.

int US_Experiment::rotorID

The rotor that was used.

Definition at line 53 of file us_experiment.h.

QString US_Experiment::rotorName

The name of the rotor.

Definition at line 56 of file us_experiment.h.

QString US_Experiment::rotorSerial

The serial number of the rotor.

Definition at line 55 of file us_experiment.h.

QDate US_Experiment::rotorUpdated

The date of the calibration.

Definition at line 60 of file us_experiment.h.

QList< double > US_Experiment::rpms

A list of rotor speeds observed during the experiment.

Definition at line 63 of file us_experiment.h.

QString US_Experiment::runID

The run ID.

Definition at line 47 of file us_experiment.h.

QString US_Experiment::runTemp

The run temperature.

Definition at line 64 of file us_experiment.h.

bool US_Experiment::syncOK

The user has connected with the db.

Definition at line 69 of file us_experiment.h.

---

The documentation for this class was generated from the following files:

• us_experiment.h
• us_experiment.cpp
