US_Config Class Reference

Provide the top level window for user configuration. More...

#include "us_config.h"

Inheritance diagram for US_Config:

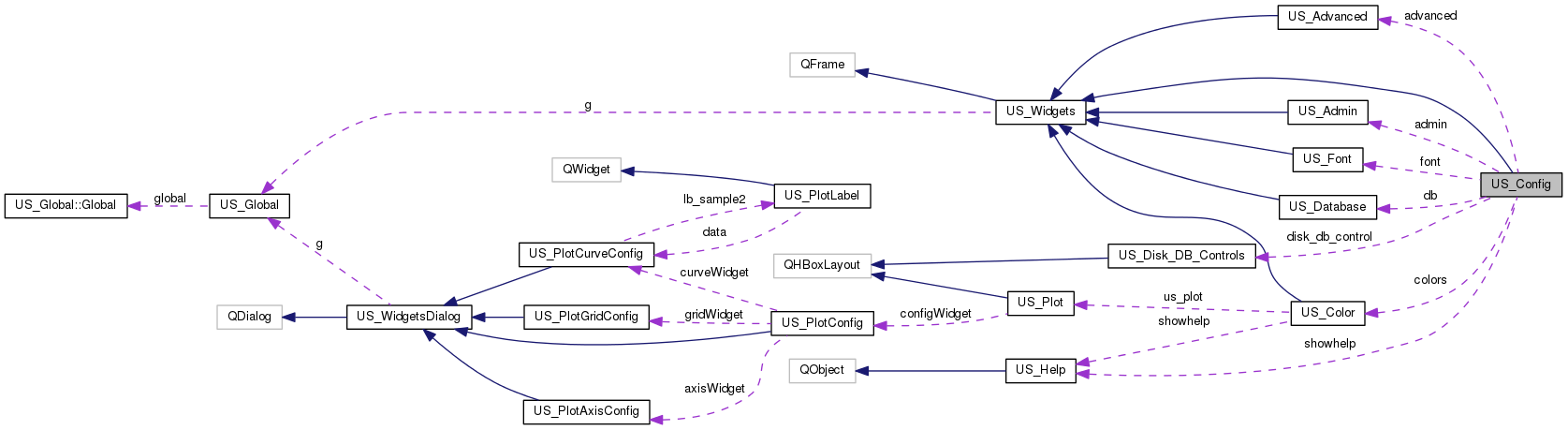

Collaboration diagram for US_Config:

Public Member Functions
	US_Config (QWidget *=0, Qt::WindowFlags=0)
	The constructor creates the various controls for the main window. More...
Public Member Functions inherited from US_Widgets
	US_Widgets (bool=true, QWidget *p=0, Qt::WindowFlags f=0)
	~US_Widgets (void)
QLabel *	us_label (const QString &, int=0, int=QFont::Bold)
QLabel *	us_textlabel (const QString &, int=-1, int=QFont::Bold)
QLabel *	us_banner (const QString &, int=0, int=QFont::Bold)
QPushButton *	us_pushbutton (const QString &, bool=true, int=0)
QTextEdit *	us_textedit (void)
QLineEdit *	us_lineedit (const QString &=0, int=-1, bool=false)
void	us_setReadOnly (QLineEdit *, bool=true)
void	us_setReadOnly (QTextEdit *, bool=true)
QListWidget *	us_listwidget (int=0)
QGridLayout *	us_checkbox (const QString &, QCheckBox *&, bool=false)
QGridLayout *	us_radiobutton (const QString &text, QRadioButton *&rb, bool state=false)
QProgressBar *	us_progressBar (int, int, int=0)
QComboBox *	us_comboBox (void)
QLCDNumber *	us_lcd (int, int=0)
QwtCounter *	us_counter (int, double, double, double=0.0)
QwtPlot *	us_plot (const QString &, const QString &=QString(), const QString &=QString())
QwtPlotGrid *	us_grid (QwtPlot *)
QwtPlotCurve *	us_curve (QwtPlot *, const QString &)
QwtPlotPicker *	us_picker (QwtPlot *)
QTabWidget *	us_tabwidget (int=0, int=QFont::Bold)
void	write_plot (const QString &, const QwtPlot *)
	Write a plot file (PNG or SVG+PNG) from a plot. More...
int	clean_etc_dir (bool=false)
	Clean install and work ./etc directories. More...

Private Slots
void	open_browser (void)
void	open_workDir (void)
void	open_importDir (void)
void	open_tmpDir (void)
void	update_colors (void)
void	update_font (void)
void	update_db (void)
void	update_password (void)
void	update_advanced (void)
void	update_workDir (void)
void	update_importDir (void)
void	update_tmpDir (void)
void	save (void)
void	help (void)
void	set_data_location (bool)

Private Attributes
US_Help	showhelp
US_Database *	db
US_Font *	font
US_Color *	colors
US_Admin *	admin
US_Advanced *	advanced
QPushButton *	pb_help
QPushButton *	pb_save
QPushButton *	pb_cancel
QPushButton *	pb_browser
QLineEdit *	le_browser
QPushButton *	pb_rootDir
QLineEdit *	le_rootDir
QPushButton *	pb_workDir
QLineEdit *	le_workDir
QPushButton *	pb_importDir
QLineEdit *	le_importDir
QPushButton *	pb_tmpDir
QLineEdit *	le_tmpDir
QDoubleSpinBox *	sb_temperature_tol
QRadioButton *	rb_on
QRadioButton *	rb_off
QPushButton *	pb_color
QPushButton *	pb_font
QPushButton *	pb_db
QPushButton *	pb_password
QPushButton *	pb_advanced
US_Disk_DB_Controls *	disk_db_control
bool	chg_dimport
bool	chg_dtmp

Additional Inherited Members
Static Public Member Functions inherited from US_Widgets
static QFont	fixedFont (void)
Public Attributes inherited from US_Widgets
US_Global	g
	Connect to global memory and make the values accessible. More...
QPalette	vlgray
	Very light gray palette for read-only line edits. More...

Detailed Description

Provide the top level window for user configuration.

This class provides the top level window for user configuration. It allows customization of the user's www browser, different working directories, and miscellaneous constants. It also provides pushbuttons for access to screens to configure the user's Master Password, database settings, fonts, and widget colors.

Definition at line 23 of file us_config.h.

Constructor & Destructor Documentation

US_Config::US_Config	(	QWidget *	parent = 0,
		Qt::WindowFlags	flags = 0
	)

The constructor creates the various controls for the main window.

Parameters

parent	A pointer to the parent widget. This normally can be left as NULL.
flags	An enum value that describes the window properties. This normally can be left as 0 (Qt::Widget).

Definition at line 25 of file us_config.cpp.

Member Function Documentation

void US_Config::help ( void  )

privateslot

Definition at line 197 of file us_config.cpp.

void US_Config::open_browser ( void  )

privateslot

Definition at line 258 of file us_config.cpp.

void US_Config::open_importDir ( void  )

privateslot

Definition at line 280 of file us_config.cpp.

void US_Config::open_tmpDir ( void  )

privateslot

Definition at line 293 of file us_config.cpp.

void US_Config::open_workDir ( void  )

privateslot

Definition at line 267 of file us_config.cpp.

void US_Config::save ( void  )

privateslot

Definition at line 202 of file us_config.cpp.

void US_Config::set_data_location ( bool  )

privateslot

Definition at line 220 of file us_config.cpp.

void US_Config::update_advanced ( void  )

privateslot

Definition at line 252 of file us_config.cpp.

void US_Config::update_colors ( void  )

privateslot

Definition at line 228 of file us_config.cpp.

void US_Config::update_db ( void  )

privateslot

Definition at line 240 of file us_config.cpp.

void US_Config::update_font ( void  )

privateslot

Definition at line 234 of file us_config.cpp.

void US_Config::update_importDir ( void  )

privateslot

Definition at line 322 of file us_config.cpp.

void US_Config::update_password ( void  )

privateslot

Definition at line 246 of file us_config.cpp.

void US_Config::update_tmpDir ( void  )

privateslot

Definition at line 329 of file us_config.cpp.

void US_Config::update_workDir ( void  )

privateslot

Definition at line 306 of file us_config.cpp.

Member Data Documentation

US_Admin* US_Config::admin

private

Definition at line 42 of file us_config.h.

US_Advanced* US_Config::advanced

private

Definition at line 43 of file us_config.h.

bool US_Config::chg_dimport

private

Definition at line 77 of file us_config.h.

bool US_Config::chg_dtmp

private

Definition at line 78 of file us_config.h.

US_Color* US_Config::colors

private

Definition at line 41 of file us_config.h.

US_Database* US_Config::db

private

Definition at line 39 of file us_config.h.

US_Disk_DB_Controls* US_Config::disk_db_control

private

Definition at line 75 of file us_config.h.

US_Font* US_Config::font

private

Definition at line 40 of file us_config.h.

QLineEdit* US_Config::le_browser

private

Definition at line 50 of file us_config.h.

QLineEdit* US_Config::le_importDir

private

Definition at line 59 of file us_config.h.

QLineEdit* US_Config::le_rootDir

private

Definition at line 53 of file us_config.h.

QLineEdit* US_Config::le_tmpDir

private

Definition at line 62 of file us_config.h.

QLineEdit* US_Config::le_workDir

private

Definition at line 56 of file us_config.h.

QPushButton* US_Config::pb_advanced

private

Definition at line 73 of file us_config.h.

QPushButton* US_Config::pb_browser

private

Definition at line 49 of file us_config.h.

QPushButton* US_Config::pb_cancel

private

Definition at line 47 of file us_config.h.

QPushButton* US_Config::pb_color

private

Definition at line 69 of file us_config.h.

QPushButton* US_Config::pb_db

private

Definition at line 71 of file us_config.h.

QPushButton* US_Config::pb_font

private

Definition at line 70 of file us_config.h.

QPushButton* US_Config::pb_help

private

Definition at line 45 of file us_config.h.

QPushButton* US_Config::pb_importDir

private

Definition at line 58 of file us_config.h.

QPushButton* US_Config::pb_password

private

Definition at line 72 of file us_config.h.

QPushButton* US_Config::pb_rootDir

private

Definition at line 52 of file us_config.h.

QPushButton* US_Config::pb_save

private

Definition at line 46 of file us_config.h.

QPushButton* US_Config::pb_tmpDir

private

Definition at line 61 of file us_config.h.

QPushButton* US_Config::pb_workDir

private

Definition at line 55 of file us_config.h.

QRadioButton* US_Config::rb_off

private

Definition at line 67 of file us_config.h.

QRadioButton* US_Config::rb_on

private

Definition at line 66 of file us_config.h.

QDoubleSpinBox* US_Config::sb_temperature_tol

private

Definition at line 64 of file us_config.h.

US_Help US_Config::showhelp

private

Definition at line 38 of file us_config.h.

---

The documentation for this class was generated from the following files:

• us_config.h
• us_config.cpp
