UltraScan Save Color Map File:

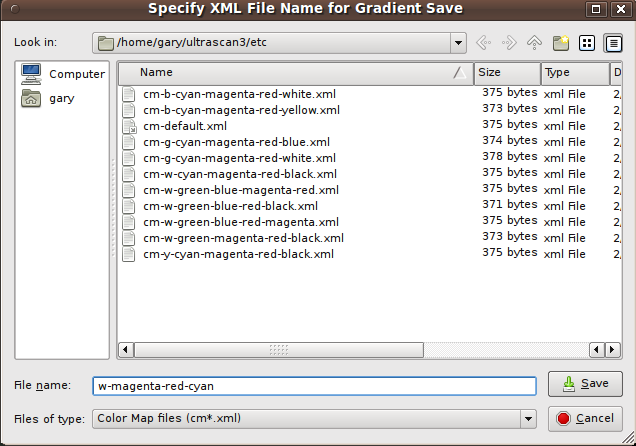

The UltraScan III US_Colorgradient application saves a color map to a file using a file dialog.

The file is saved to the ./etc directory and is generally of a "cm_*.xml" form. It represents a color gradient in the form of a color map.

The file naming convention is as follows:

• cm- : a prefix signifying colormap.
• b- : a single-character code for the start color with values such as "b" for black, "w" for white, "y" for yellow, "g" for gray.
• cyan-magenta-... : a string of color-step end color names.
• .xml : a required suffix signifying that the file is XML.

When specifying the output file name, it is not necessary to include the "cm-" prefix or ".xml" extension. They will be automatically added to the name. If you wish to specify a name with no "cm-" prefix, prefix the given name with ".". No "cm-" prefix will then be given and the "." prefix will be ignored. Simularly, a "." suffix will signal a desire to add no extension.
